Product Details

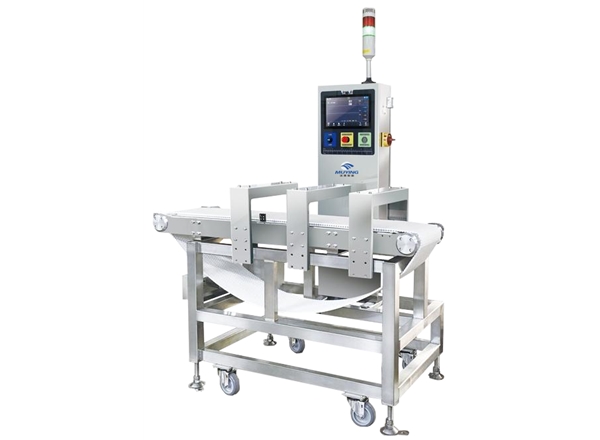

LNAD4000 Aluminum Foil Metal Detector

Wechat consulting

Consult now

+86 0769-86298863

Details

Applicable industries

·Ordinary metal detectors detect all metals that can conduct electricity, but in fact many products are packaged with aluminum. For example: candy, biscuits, salt-containing products, etc., the above products cannot be detected by ordinary metal detectors, but these problems can be solved by using special aluminum foil metal detectors.

Product Features

Suitable for all foil-wrapped products

Chain plate conveyor belt is easy to clean

The height of the detection channel can be adjusted up and down, suitable for products of different sizes

Color touch screen (7-inch TFT LCD)
? Intuitive and convenient full color touch screen,

Sensitivity memory function
? It can store the setting values of 10 different products, and it is easy to operate.

Controlled metal detection history
?Check the detection records of different time periods (specified in daily/weekly/monthly/period)
? The data record can be exported through LCD screen and U disk.

Convenient software upgrades
? Software upgrade via USB and touch screen when latest version

Hierarchical password setting function
? For different positions, different permissions, set passwords suitable for different levels of permissions, clarify permissions and responsibilities (users, management and engineers)

You can choose the rejection method: copy rejection, push rod rejection, blow air rejection.

Technical parameter

Test the product	Aluminum foil packaging products
Effective detection channel width	350mm
Effective detection channel height	<150mm (adjustable)
Detectable Metal Type	FE, SUS304
Detection accuracy	When the passing height is less than 50mm, it can detect 1.0mm
	When the passing height is less than 100mm, it can detect 1.5mm
	When the passing height is less than 150mm, it can detect 2.0mm
transfer speed	15-40m/min
Overall length	1600mm
Alarm method	Sound and light alarm, belt stop
authority management	Multi-level password protection function
Product Category	10 different product parameters can be saved
data storage	USB exportable
Signal processing method	Digital DSP processing
Operation interface	10-inch touch screen
language selection	Chinese and English and other languages
Parameter setting	Automatic setting + manual setting
conveyor belt	White PU food grade
Operating Voltage	Single AC 220V 50/60Hz
Operating temperature	0℃-40℃
Mechanical part	304 stainless steel
Probe protection class	IP55
Voltage	Single-phase AC220V 50/60Hz
power	300W
Remarks: The detection sensitivity will change due to factors such as environment and products, and the actual test of the product shall prevail.
