Applicable industries

· This series of X-ray foreign body detectors is mainly designed to detect small fish bones such as side and middle spines in fish meat, and has the characteristics of high precision and high reliability.


Product Features

1. It is widely used in fishbone detection to realize comprehensive detection and rejection of fishbone, metal and non-metal foreign objects.

2. No matter how complex the product is, it can also be set through the automatic learning process, and the operation is simple.

3. The unique smart eye algorithm platform adopts the dynamic feature recognition method to automatically select the algorithm parameters and obtain the appropriate sensitivity.

4. The self-learning process only needs to collect 6-10 images, and wait about 20 seconds to complete the parameter setting.

5. Server-level Linux system fundamentally guarantees equipment stability and computer virus immunity.

6. The fully sealed design is adopted to deal with the humid environment, the double-layer thermal cycle is adopted to deal with the high temperature environment, and the anti-condensation design is adopted to deal with the temperature difference environment.

7. All purchased parts are high-end accessories to ensure stable operation in harsh environments.

8. The protection level of the equipment detection channel is IP66, which can be washed directly.

9. The X-ray leakage meets the US FDA standard, and the outside of the equipment is less than 1uSv/h.

10. Modular design, customers do not need to re-purchase the host if the production line is upgraded.

11. It only takes a few seconds to disassemble the belt, and it is extremely convenient to disassemble and wash on site.

12. Product configuration and inspection pictures can be automatically saved and exported for analysis.


Technical Data Sheet

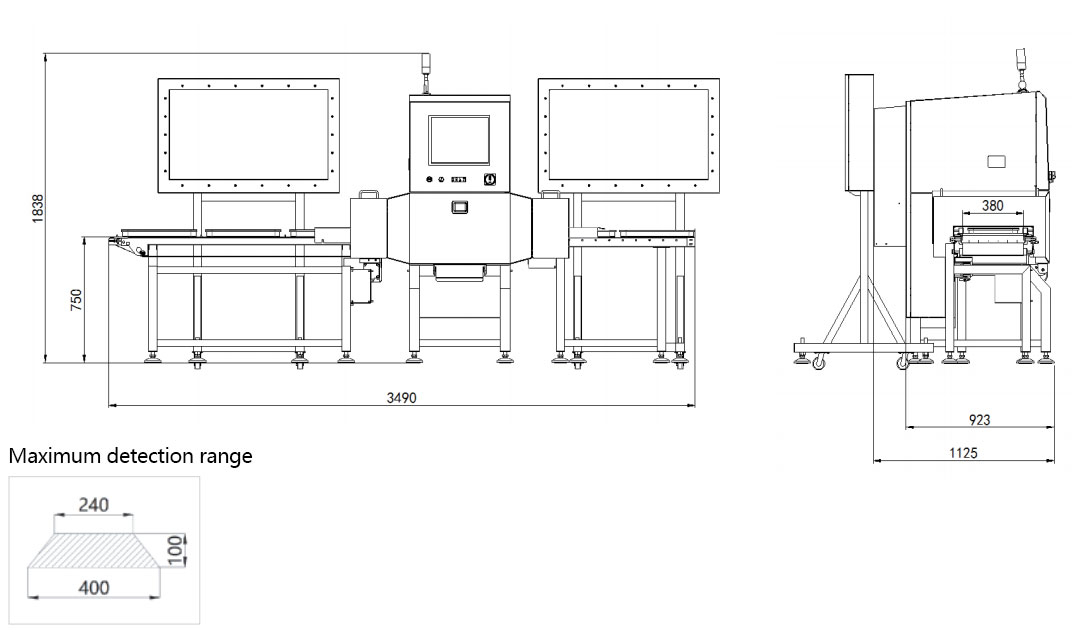

Dimensions
